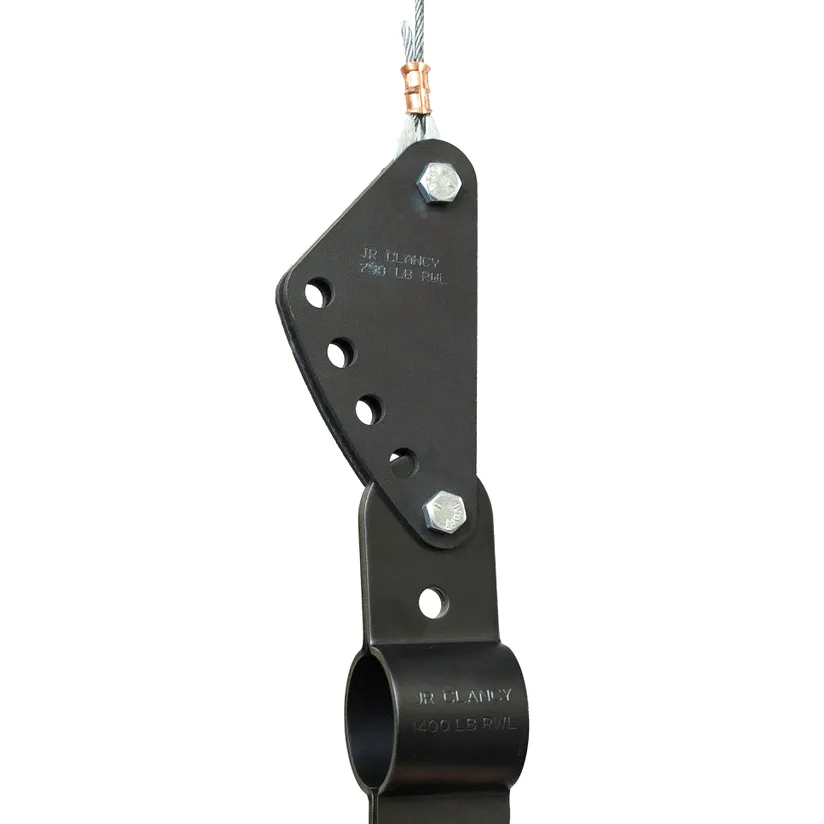

Batten Trim Plate

Overview

Features

• Used for batten trimming or tensioning lines; must be used as illustrated utilizing two plates and associated hardware
• HR Steel Plate, 11-gauge, ASTM A1011 HSLA grade 45
• Flat black powder-coat or paint finish
• 1/4" (6 mm) cable is the max diameter wire rope for this product
• The overall take-up distance is 2-5/16" (59 mm) per adjustment; the average increment distance is 9/16" (14 mm)
• Three-year warranty against defects in materials or workmanship is provided on all J.R. Clancy equipment, additional warranty information is available at jrclancy.com

Order Information

Number	Description	RWL	Weight
015-1421	Batten Trim Plate Assembly	750 lb (340 kg)	1.2 lb (0.54 kg)
RWL: RWL is maximum load that can be applied to the batten trim clamp which is in "like new" condition and has been properly installed, maintained, and operated.
