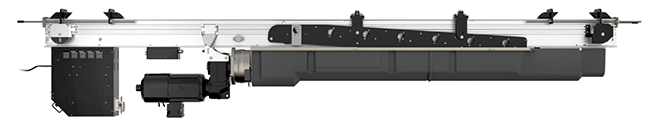

PowerLift® Hoist

product

Overview

PowerLift is an economical, automated hoisting system available in a range of fixed or variable speeds to meet your requirements. Its versatile mounting clip system enables the PowerLift to be installed in virtually any space, including performance spaces without a conventional grid. The clip mounting options make this possible, even if the supporting steelwork is not in the optimum position.

  • Speed: Up to 180 fpm (1 m/s)
  • Travel: Up to 62 ft (19 m)
  • Gross Cap.: Up to 2000 lb (907 kg)

Applications

PowerLift's high capacity and compact size make it ideal for many stage hoisting applications including:
  • Lighting
  • Scenery
  • Shell ceilings

The J.R. Clancy Advantage

  • Integrated gearmotor and brake provides proven reliability and features an iron case for vibration and noise control.
  • Reliable head block with nylon sheaves provides long, trouble-free life and meets or exceeds wire rope manufacturer recommendations.
  • Closed loop vector drives provide pinpoint accuracy and can hold the load without a brake for added security.
  • Hoists can be mounted vertically or horizontally. For theatres without grids, vertical mounting can save space and offers easier access for maintenance.
  • Versatile mounting clips encompass a tremendous range of beam spacing and flange widths for easy installation.
  • Compact moving drum allows for a small, efficient hoist. Preloaded chase rollers ensure cables stay in grooves.
  • Sturdy aluminum backbone eliminates external strengthening members.
  • Center to center spacing 12” (305 mm) side by side, 8” (203 mm) offset
  • Dual brake.
  • Dual encoder.

Controls

PowerLift works with the entire range of Clancy automation consoles or push button controls. It is designed to work with J.R. Clancy’s SceneControl family of consoles.

PowerLift Models

Part Number Load Speed Gross Capacity Hoist Weight
018-P0220G 20 fpm (0.1 m/s) 2,000 lb (907 kg) 750 lb (340 kg)
018-P0220R 0 – 20 fpm (0 – 0.1 m/s) 2,000 lb (907 kg) 750 lb (340 kg)
018-P1212R 0 – 120 fpm (0 – 0.6 m/s) 1,200 lb (544 kg) 770 lb (349 kg)
018-P1220R 0 – 120 fpm (0 – 0.6 m/s) 2,000 lb 907 kg) 800 lb (363 kg)
018-P1812R 0 – 180 fpm (0 – 0.9 m/s) 1,200 lb (544 kg) 800 lb (363 kg)
018-P1817R 0 – 180 fpm (0 – 0.9 m/s) 1,750 lb (793 kg) 850 lb (385 kg)

PowerLift Options

  • Load Sensing
  • 7 Lines 62' (19 m) of travel, 8 Lines 49' (15 m) of travel
  • 208V or 480V three phase motor. Other voltages available
  • Covers to keep moving parts shielded for safety
  • Cable management for electric and other powered sets

Loft Block Options

  • Universal Series upright or underhung
  • 19 Series underhung

Batten Termination Options

  • Trim Chain
  • Pipe Clamp and Turnbuckle
  • Batten Trim Plate
  • Batten Trim Clamp

Batten Options

  • 1.5" Schedule 40 batten
  • 1.5" Schedule 80 batten
  • 1.5" Schedule 40 truss batten
Please call your Wenger | J.R. Clancy representative so we can thoroughly understand your needs in order to provide the best solution and estimate.

Construction

  • Integrated gearmotor and brake provides proven reliability and features an iron case for vibration and noise control.
  • Reliable head block with nylon sheaves provides long, trouble-free life and meets or exceeds wire rope manufacturer recommendations.
  • Closed loop vector drives provide pinpoint accuracy and can hold the load without a brake for added security.
  • Hoists can be mounted vertically or horizontally.
    For theatres without grids, vertical mounting can save space and offers easier access for maintenance.
  • Versatile mounting clips encompass a tremendous range of beam spacing and flange widths for easy installation.
  • Compact moving drum allows for a small, efficient hoist.
    Preloaded chase rollers ensure cables stay in grooves.
  • Sturdy aluminum backbone eliminates external strengthening members.
  • Center to center spacing 12” (305 mm) side by side, 8” (203 mm) offset.
  • Dual brake.
  • Dual encoder.



Ordering Information

Please call your Wenger | J.R. Clancy representative so we can thoroughly understand your needs in order to provide the best solution and estimate.
