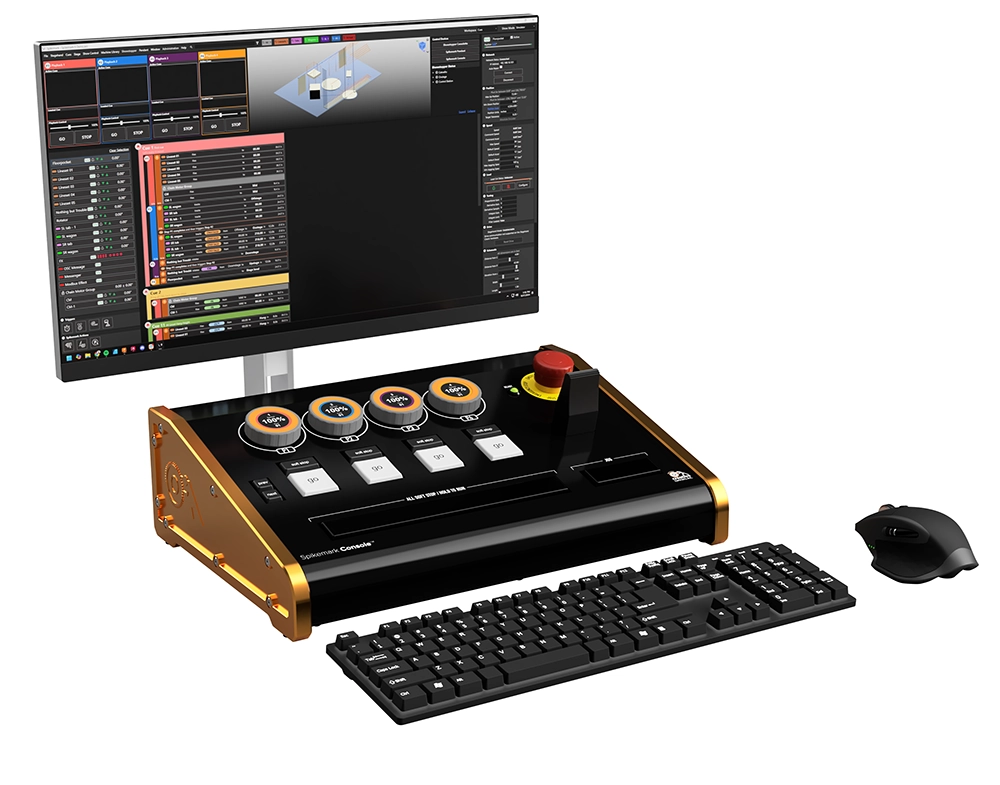

Spikemark Console

Overview

Spikemark Console is designed for performances that demand the most precise cueing and flexible playback control. It is the perfect desk for a hands on automation operator. Ideal for touring, permanant installations, and show-to-show changes of theatre.

Designed for cue creation, jogging, and dynamic playback environments. It combines a high performance PC with multi-use, data display Playback dials, soft-stop buttons, jog paddle, and hold-to-run switch, the Console is the ultimate Spikemark desk.



Applications

Ideal for touring, permanent installations, and show-to-show changes of theatre. Spikemark Console is crafted for performances that demand the most precise cueing and flexible playback control.



Key Features

The full power of Spikemark software including:

• Roles and permissions to adjust access
• Unlimited axes access
• Precision joystick jogging
• Unlimited user recordable targets (spikes)
• Group motion control
• Multi-step presets with 3D visualization
• Unlimited User-Recordable Targets (Spikes)
• Group Motion Control
• Multi-Step Presets with 3d visualization
• Performance cueing
  • Four physical playbacks and unlimited virtual playbacks
  • Motion visualizer
  • Dynamic Spikes
  • Speed limited zones
  • Show control and media server integration
  • Built in simulator for offline programming
• Optional pairing with Spikemark Vantis for simple operation and jogs
• One-year warranty against defects in materials or workmanship is provided on all J.R. Clancy and Creative Conners equipment, additional warranty information is available at jrclancy.com and creativeconners.com



Specifications

• Console dimensions: 6"h x 17-1/2"w x 12-1/4"d (152 x 445 x 311 mm)
• Overall dimensions with monitor and keyboard: 18"h x 21-1/4"w x 30"d (457 x 540 x 762 mm)
• Console and Monitor fit within a 19" (483 mm) rack



Hardware

• 24" (610 mm) monitor with display port cable
• Keyboard and mouse
• Console
  • TFT LCD playback dials x 4
  • Playback soft Stop and Go buttons x 4
  • Previous/Next Cue buttons
  • E-Stop and system ready Indicator
  • Jog joystick
  • Hold-to-Run / all soft Stop button



Safety

• Emergency Stop Operator
• Hold-to-Run operation
• Multi-level security
• Status/Alarm indication
