Stagehand Lineset

Overview

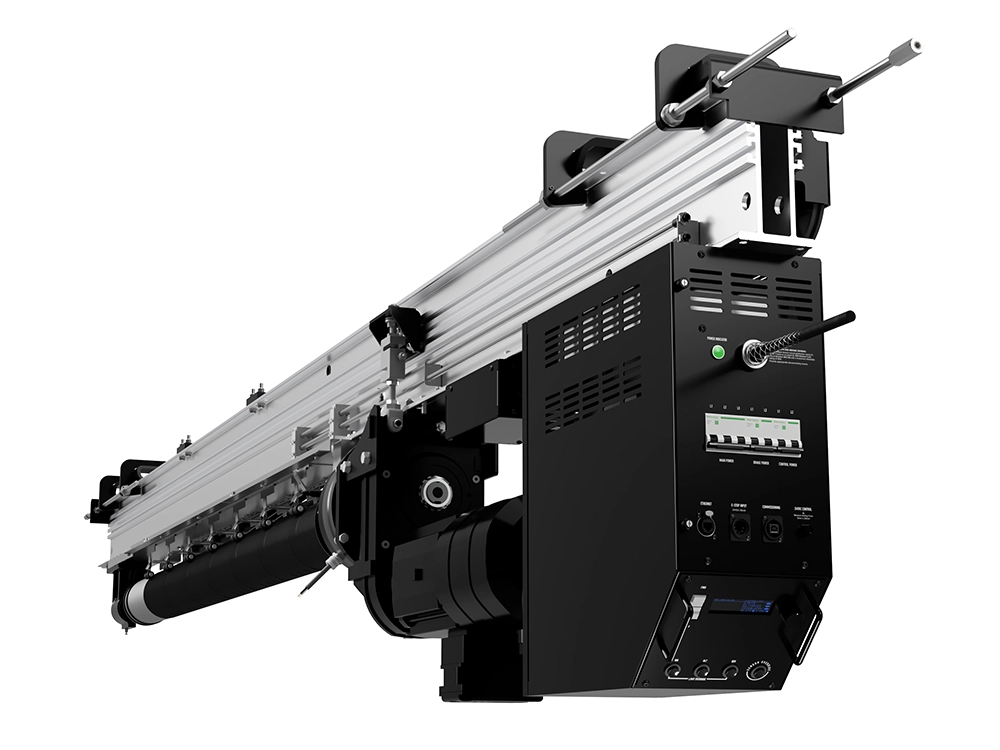

Stagehand Lineset has all the features of the Creative Conners Stagehand Pro 5 motion controller, but in an enclosure that directly mounts to a lineset hoist for distributed control in the fly loft. It can be used either with new machinery including our fleet of J.R. Clancy hoists, or retrofit onto existing hoists to protect the previous investment in expensive gear. Stagehand Lineset uses latching industrial receptacles for all connections for easy troubleshooting, maintenance, or replacement. To adapt existing machinery, an additional junction box may be installed.

Applications

Academic or regional theaters, houses of worship, convention centers, or concert halls. Whether it be one of our hoists or one of yours, you’ll be able to control it with a Stagehand Lineset.

Key Features

• Local Jogging controls for easy installation and testing
• Simple on-board display for configuration and status reports
• Network interface with Spikemark control
• VFD (variable frequency drive) with closed-loop vector control
• Dual-brake control for hoisting
• Individual brake test function
• Forward, reverse and ultimate limit circuits
• Integrated load monitoring
• Dedicated cross-groove detection
• Persistent Postion remembers machine position even without power by storing encoder data in nonvolatile memory
• Versatile capacity
• Built in branch circuit protection
• Remote fault diagnostics
• Wall and rack mounted options available
